A cemented carbide die for pressing CNC insert products

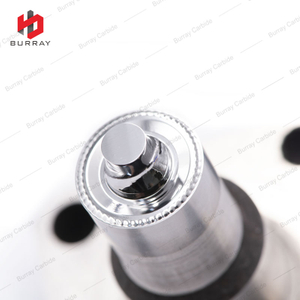

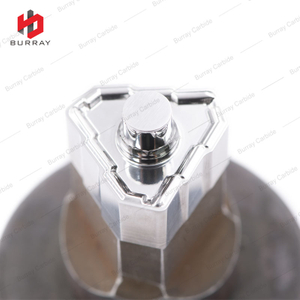

A cemented carbide die for pressing CNC insert products, including die body, punch part, and core pin assembly;

The punch part includes upper punch and lower punch;

The lower punch is provided with a core pin hole, the bottom is connected to the base, and the base is provided with an empty slot;

The die improves production efficiency, has good processing synchronization, can ensure product quality, and can quickly and lightly replace parts according to actual conditions, adapt to the processing needs of different tools, and save processing costs and time.

In the production process of CNC cutting tools, the step of stamping cemented carbide powder into tool blanks is very important. It determines whether the shape and specifications of the tool can meet the requirements. This step depends on the reasonable design of the stamping die.

It’s to say make the designed 3D products into entities. Different products have different structures, so for different models of inserts, it is necessary to design the die according to the insert model, such as the way and method of mold release, etc. . .

At present, most of the mold bodies of CNC tool stamping dies have one die hole, and the punching machine can press one insert blank in one punching action, which is high in production efficiency.
